MASTER 3m x 4m Electric Pergola
All weather
Suitable for all UK weather types
Up to 10 years guarantee
For total peace of mind
Fast Free Delivery
Free delivery UK wide*
Dedicated Customer Care
Here to assist you with questions and enquiries

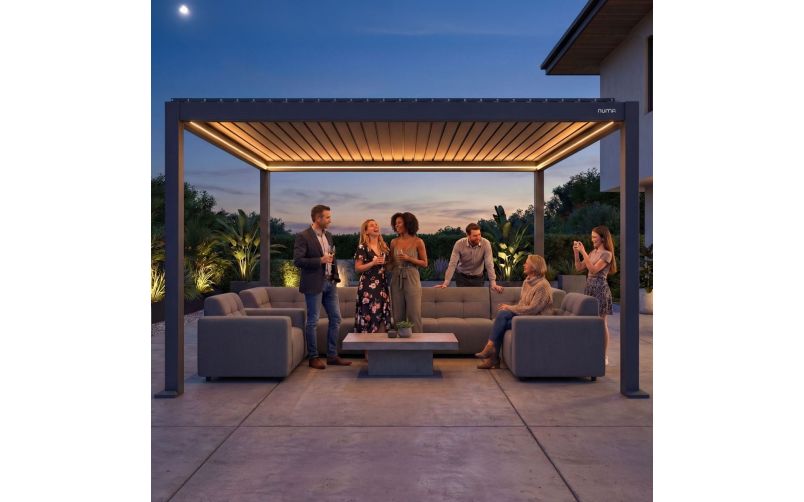

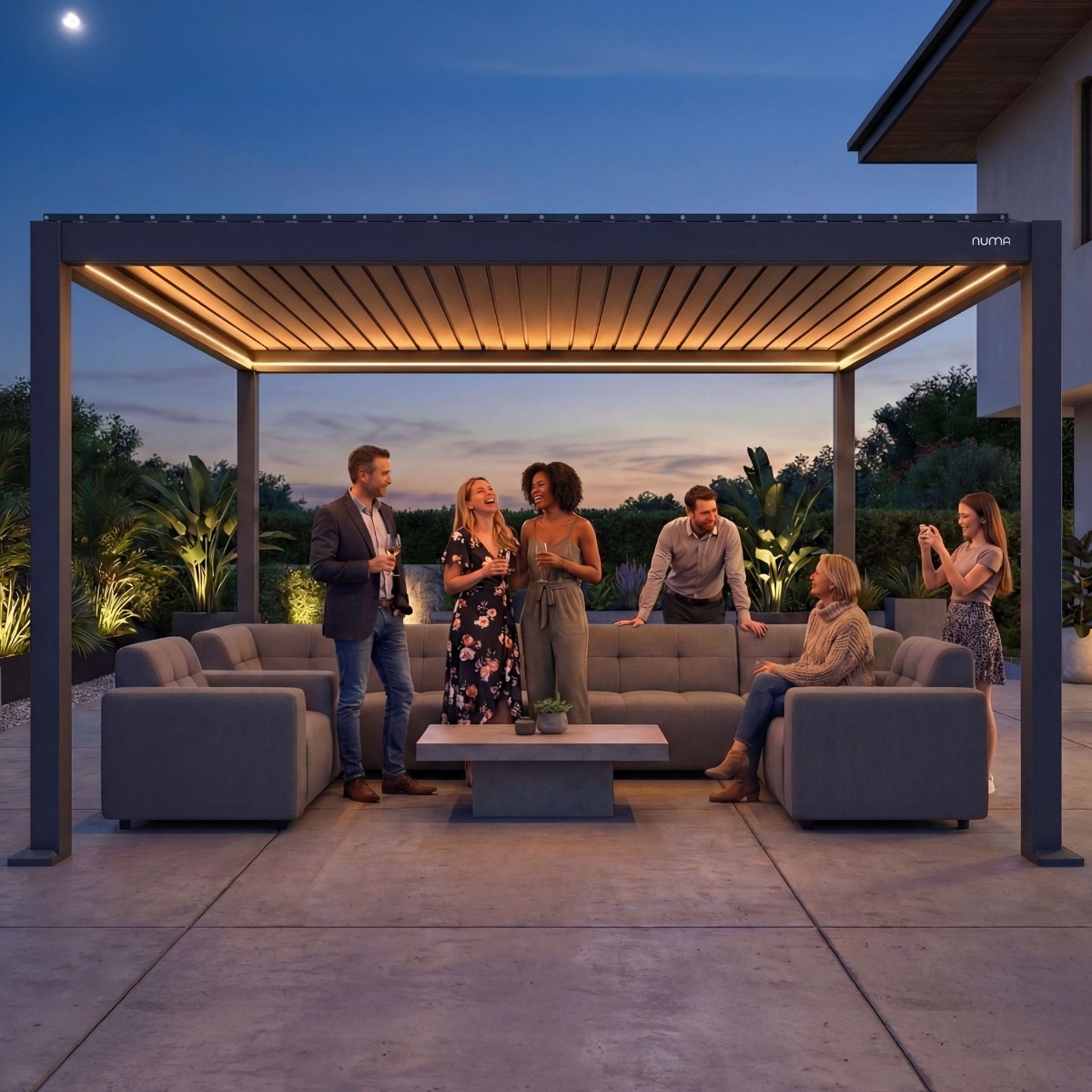

The NUMA 3x4m Electric Louvered Pergola: Expansive Design, Effortless Control Redefine the boundaries of your home with our most expansive electric model. The 3x4m Electric Pergola is engineered for those who require a larger footprint for entertaining without compromising on sleek, modern aesthetics. From sun-drenched afternoons to sophisticated evening gatherings, this structure provides the ultimate high-tech backdrop for outdoor living.

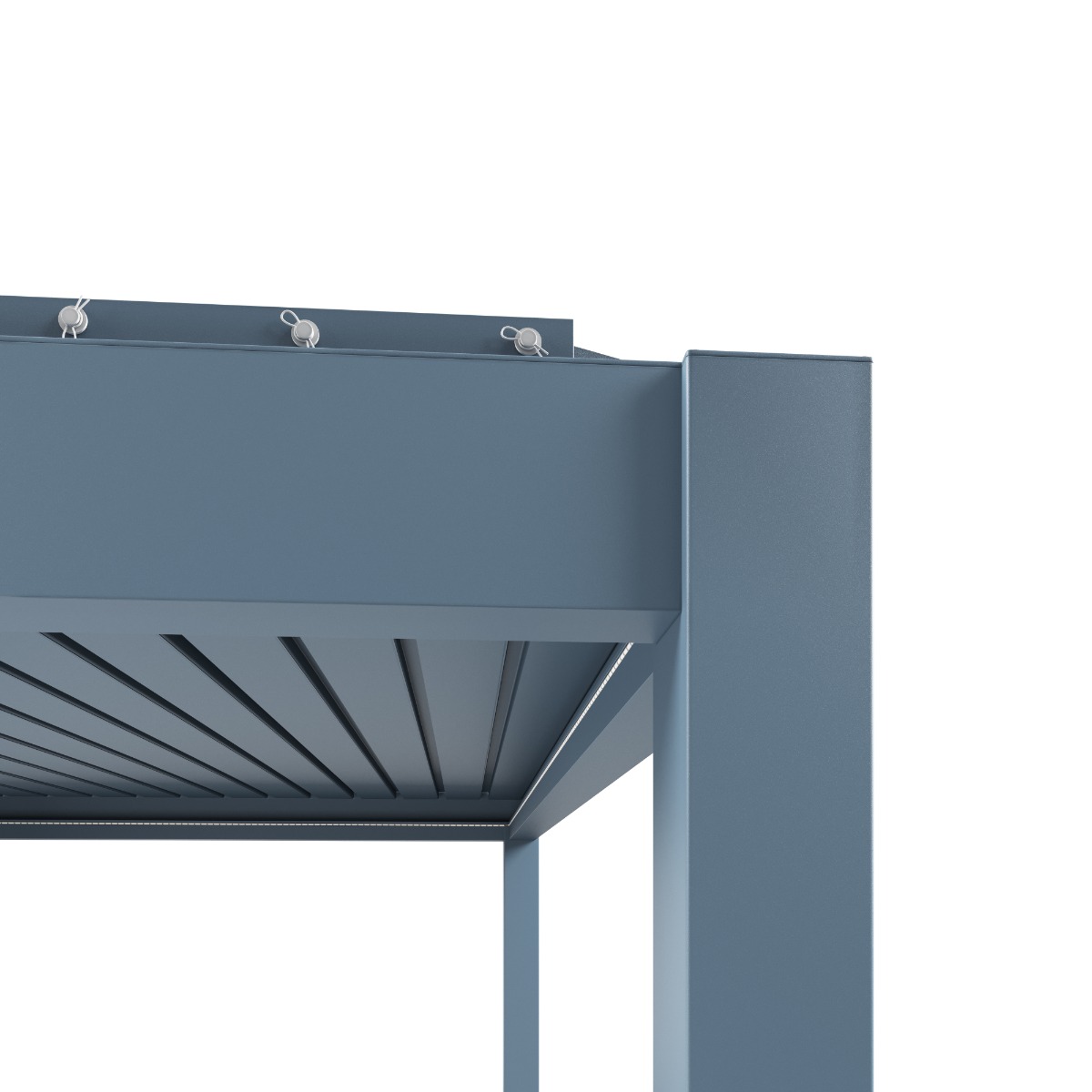

Superior Engineering and Finish At the core of the 3x4m model is a high-grade 1.5mm thick extruded aluminium frame (posts and cross beams), providing the structural rigidity needed for a larger span. Every profile undergoes an intensive multi-stage treatment including polishing, acid immersion, and air drying before being finished with a 50-60µm powder coating. This ensures a deep, peel-resistant RAL 7016 finish that remains vibrant year after year. With concealed fixings throughout, the frame maintains an uninterrupted, professional silhouette.

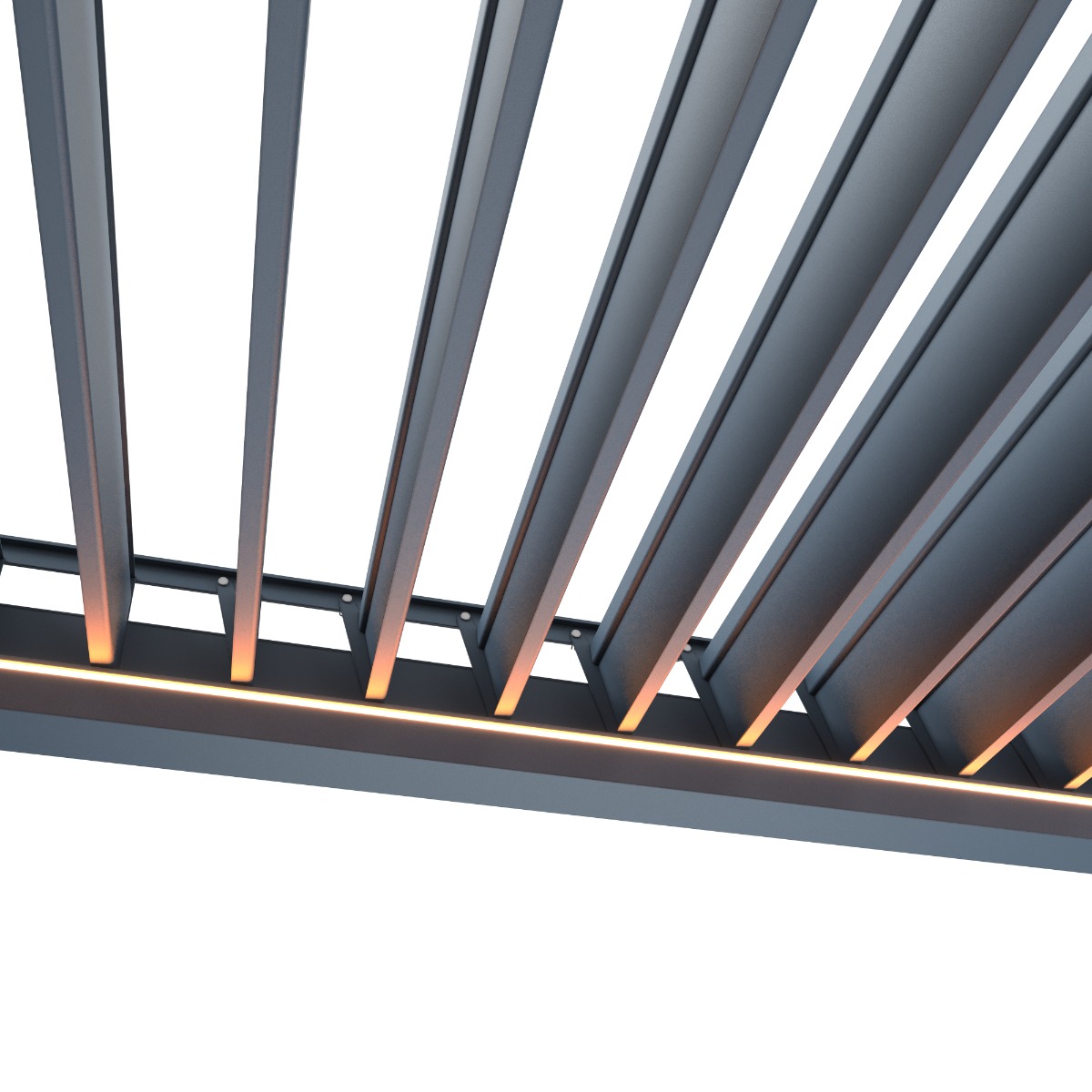

Atmosphere and Weather Mastery Take total command of the elements with our waterproof remote control. Tilt the roof louvres to a maximum angle of 95 degrees to track the sun’s path, or close them for a fully watertight seal. This model features integrated LED strip lighting recessed into the side roof panels, allowing you to transition into the evening instantly. For long-term sustainability, the lighting strips are designed to be fully changeable.
Invisible Technical Integration True to the NUMA philosophy, the tech remains hidden. The 1.5m power cable is routed internally through the frame and exits discreetly at the foot of the pergola leg, keeping your patio free from cluttered wiring. Rainwater is managed by our invisible internal drainage system, which channels water through the legs and out through escape holes at the base, keeping your furniture protected and dry.
-
3x4m Footprint: Our largest single-frame footprint, ideal for expansive dining or lounge sets.
-
10mm Glass Ready: Fully compatible with our optional 4-panel, key-lockable sliding glass door system.
-

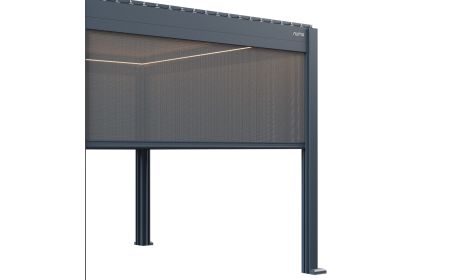

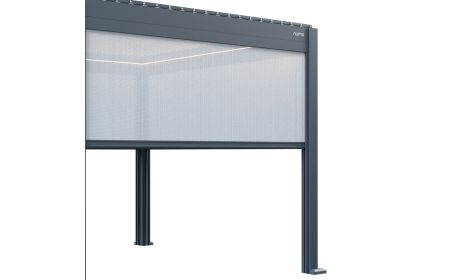

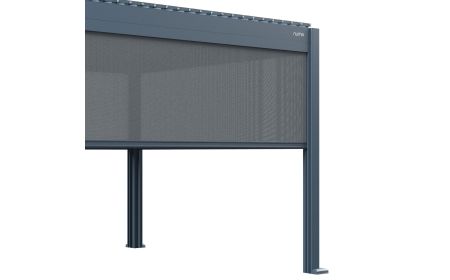

Retrospective Upgrades: Add manual or electric side blinds (Polyester + PVC) in Light or Dark Grey at any time.
-
Planning Friendly: Designed to fall under Permitted Development for most homes.
-
Installation: For customers choosing to install themselves, we recommend a 3-man crew to safely handle the 3x4m 1.5mm aluminium profiles. Professional White Glove Service is also available.

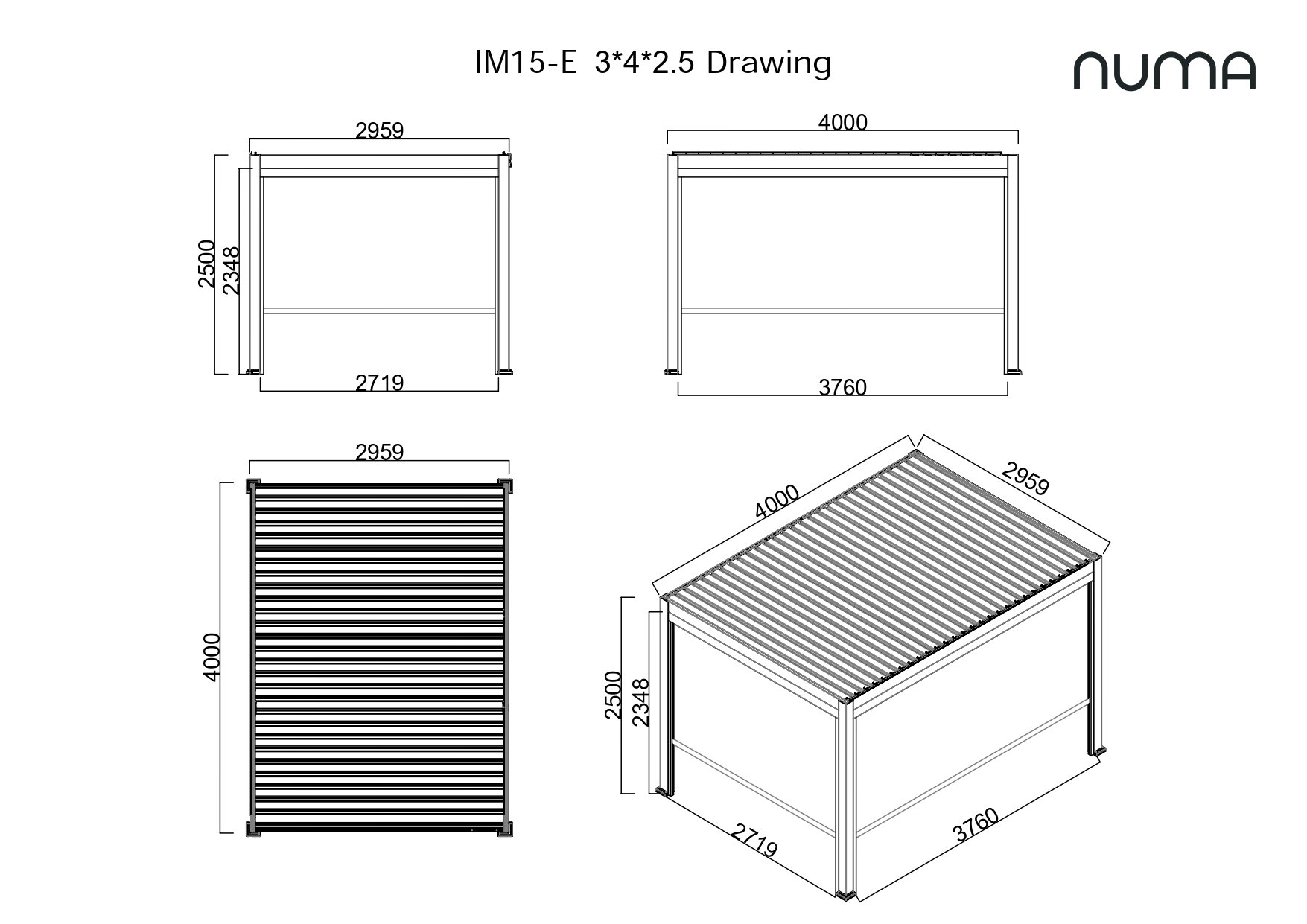

Detailed specifications and exact base dimensions are available in the Technical Drawings found in the Dimensions Tab below.
| Opening Mechanism | Remote Control |
|---|---|
| Built In Drainage | No |
| Frame Color: | Anthracite Grey RAL7016 |
| Post Framework | 12cm x 12cm x 1.5mm |
| Table Type | Rising Coffee & Dining |
Pergolas
The primary difference is the operation and the lighting. The Electric series features a motorized louvered roof and integrated LED strip lighting, whereas the Manual series uses a smooth manual wind system and has no internal lighting. Both models feature the same high-grade 1.5mm aluminium frame.
Operation depends on the model you choose. On our Electric series, the blinds are fully motorized and remote-controlled. On our Manual series, the blinds are operated manually.
No. Our side blinds are engineered to integrate specifically with their corresponding systems. The Electric Pergola series is designed exclusively for use with our motorized, remote-controlled blinds to ensure seamless operation and connectivity. If you require side blinds for your Electric Pergola, you should select the Electric Side Blind models.
Yes. In line with our cohesive design philosophy, all our pergolas and side screens are finished in UV-protected Anthracite Grey (RAL 7016). This ensures a perfect color match with our furniture collections for a unified architectural look.
No. The 1m Slatted Aluminium Screens feature fixed slats designed to provide permanent privacy and airflow. They are made of high-grade powder-coated aluminium and can be used on any side of both manual and electric models.
Pergola Installation
Once you place your order, we will contact you with an installation questionnaire. Typically, our expert crew will arrive to install your pergola 14 to 21 days after you have completed and returned that questionnaire to us.
Power must be prepared before our team arrives. There is a 1.5m power cable that exits at the foot of the pergola post. We recommend having a certified electrician install a power feed within reach of this point so our team can test the roof, lighting, and any electric blinds on the day.
Our technicians will call you 30 minutes before they arrive and will proceed with the installation come rain or shine. Once the build is complete, the team will remove all packaging, provide a full demonstration of the features, and complete a final sign-off with you.
Yes. If you choose to install the structure yourself rather than using our White Glove service, we recommend a 2-man crew for 3x3m models and a 3-man crew for 3x4m models to safely handle the 1.5mm heavy-gauge aluminium posts.
Full technical drawings, including base dimensions and exact cable exit points for our electric models, can be found in the Dimensions Tab on each product page.
